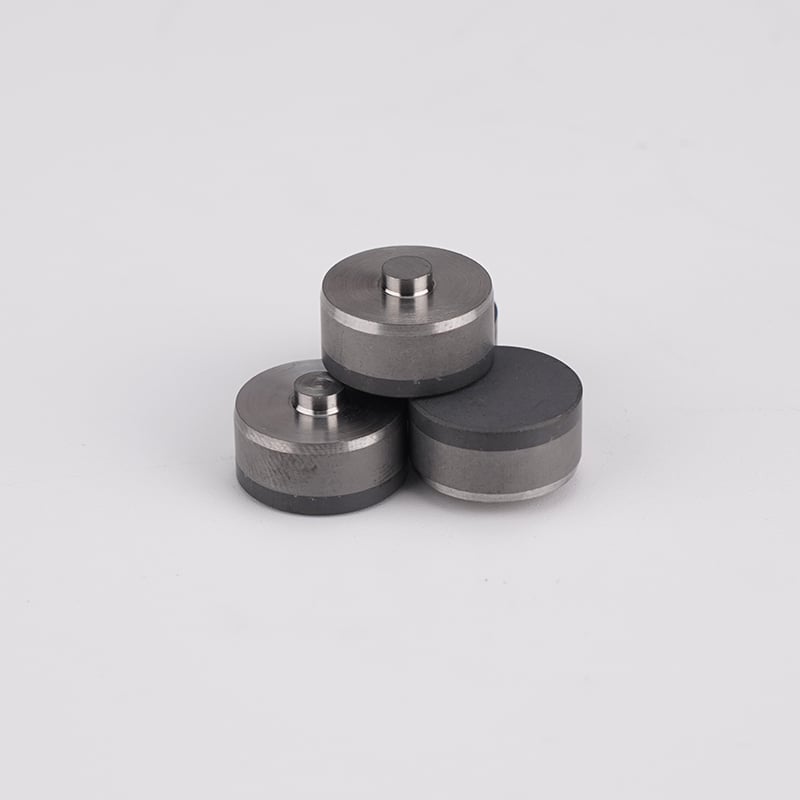

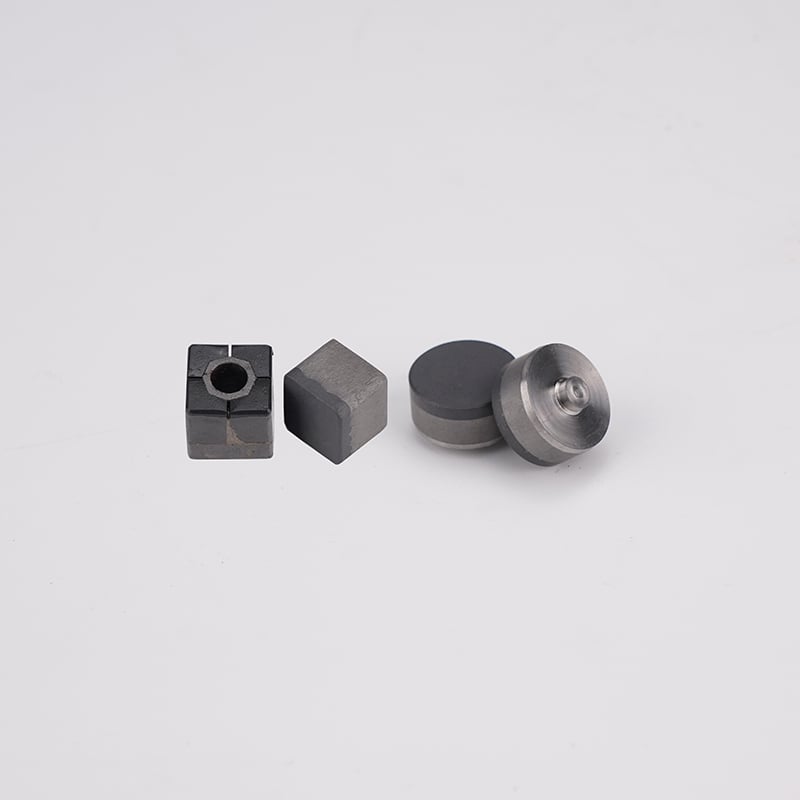

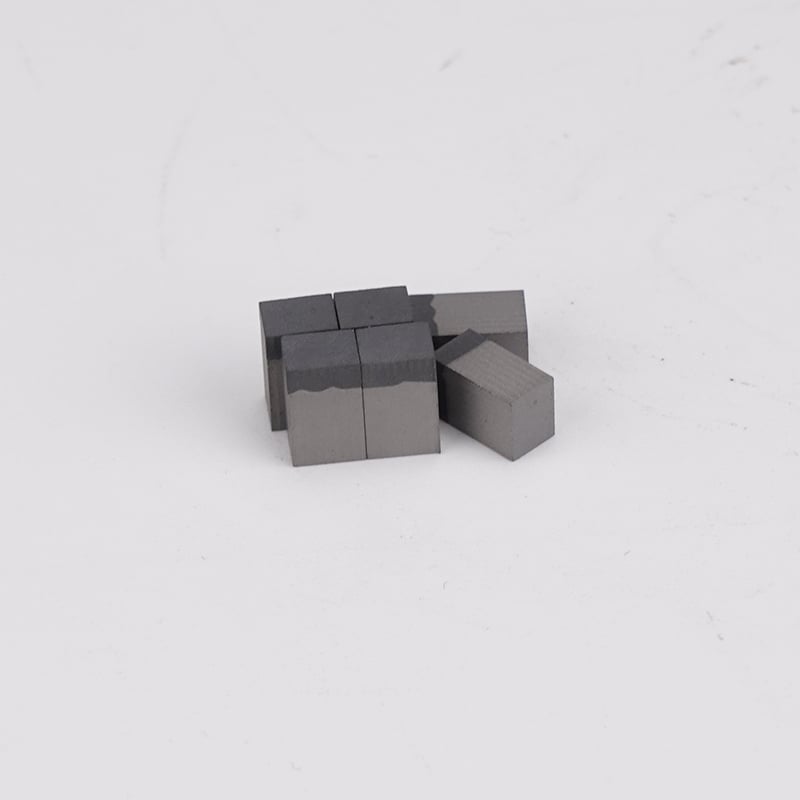

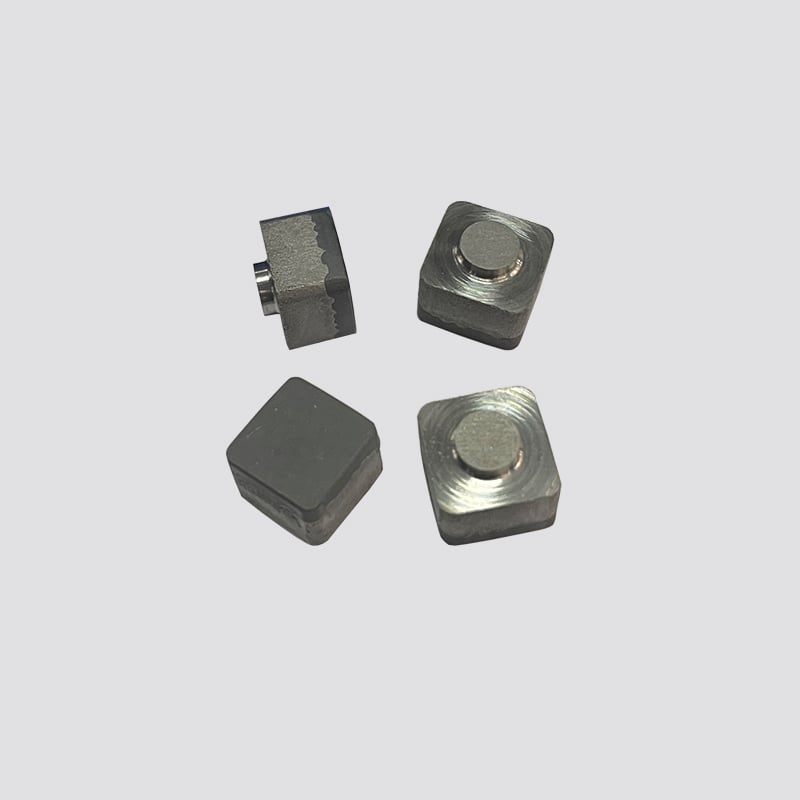

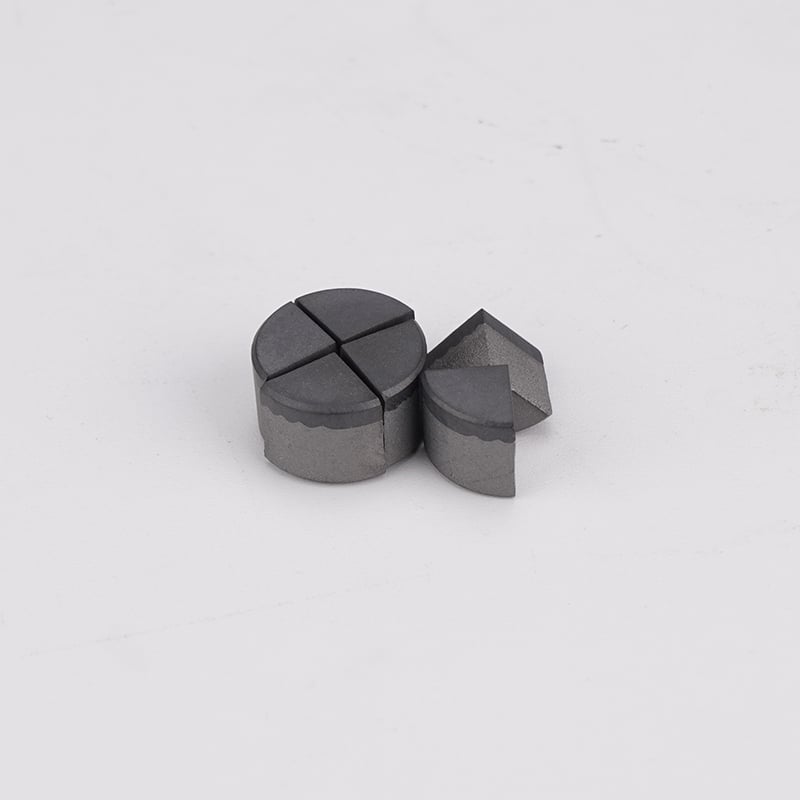

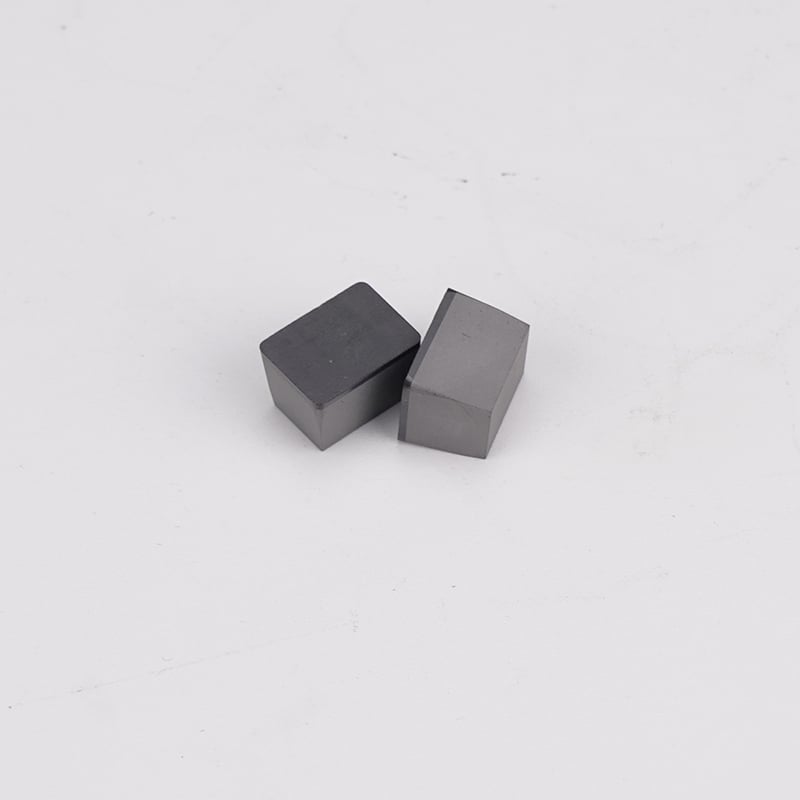

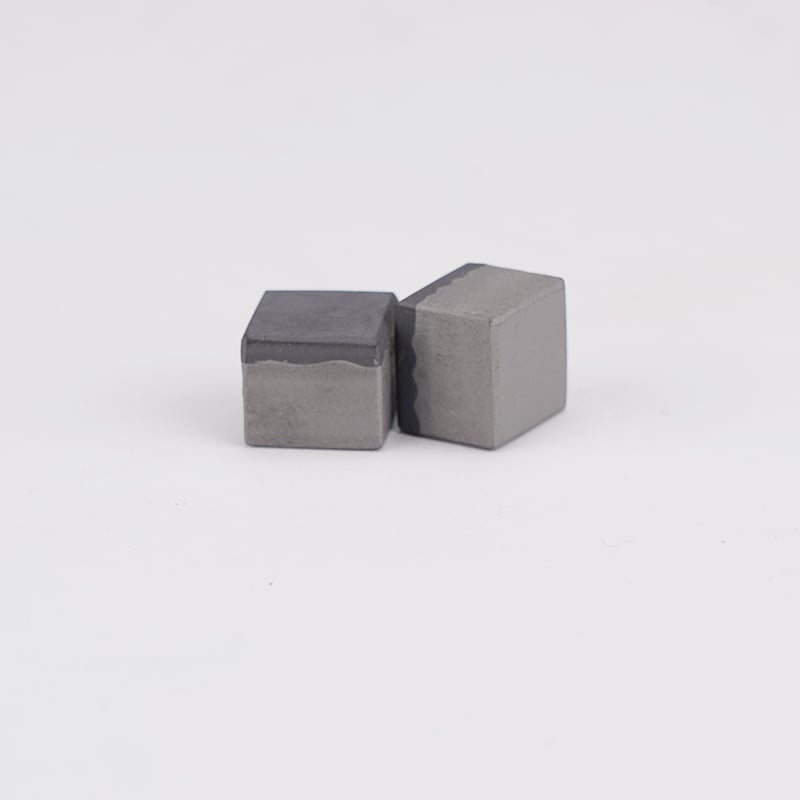

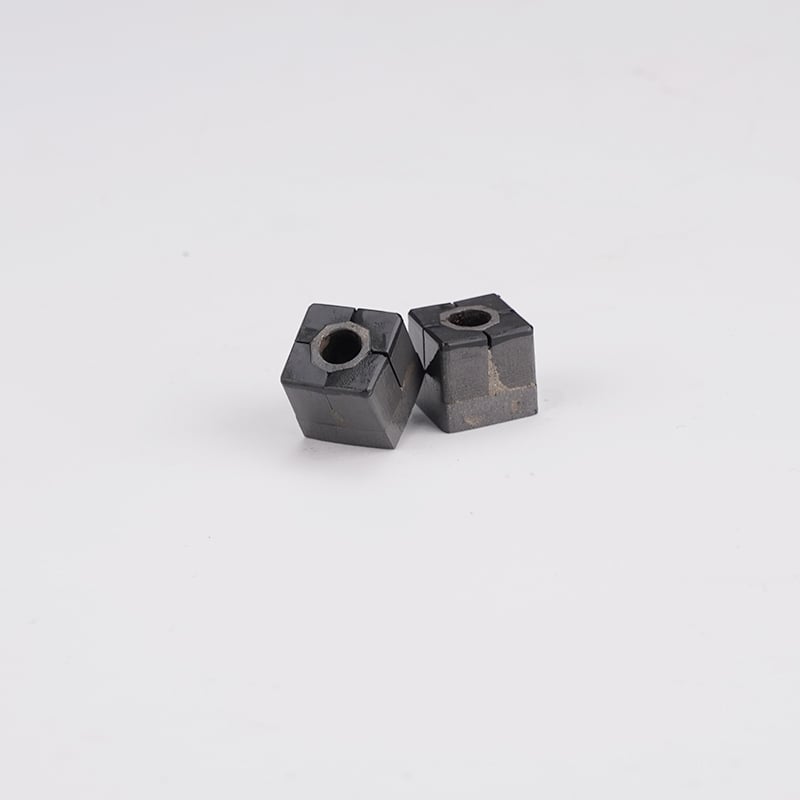

PDC cutter/PDC insert specialized for Marble Quarry
PDC cutter (Polycrystalline Diamond Compact cutter), a new superhard composite, which is made from a carbide substrate and diamond grit synthesizing at one time under high temperature and high pressure conditions. It develops base on the development of polycrystalline diamond and has the high impact and wear resistance characters of diamonds. The series related to stone application has high heat stability and wear resistance with top quality diamond fine powder and HTHP technology. It is used to make abrasive tools and marble cutting&processing.
Application: For Chain Saw Machine such as FANTINI, GARRONE, BENETTI, DAZZINI, etc., Diamond Wire-saw, Floor Flattening Equipment to process marble, granite, limestone, etc.
Product Detail

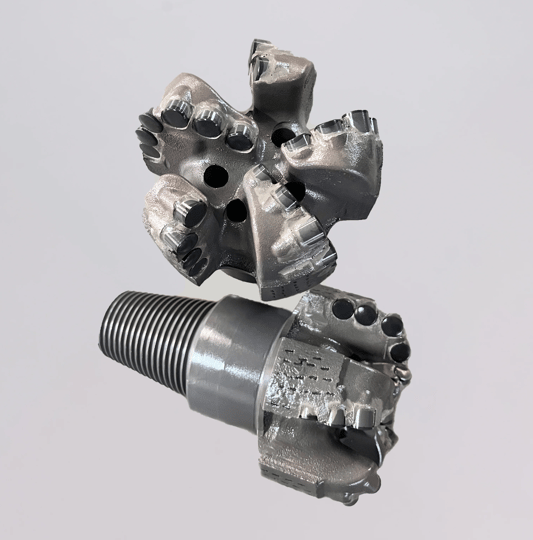

Whirlwind is a reputable producer, supplier, and wholesaler of PDC cutters and drills. We offer custom-sized PDC cutters for the stoneworking, site exploration, and oil and gas extraction industries. If you need mass customisation, get in touch with us. A decent blade may produce a superb drill.
|
Model |
Diameter (mm) |
Height (mm) |
PCD Thickness (mm) |
Wear ratio ( ×104) |
Impact resistance (J) |
|
1308MA2.0 |
13.33±0.05 |
8.00±0.05 |
2.00±0.10 |
35 |
600 |
|
1308MA2.5 |
13.33±0.05 |
8.00±0.05 |
2.50±0.10 |
35 |
600 |
|
1008MA1.7 |
10.00±0.05 |
8.00±0.05 |
1.70±0.10 |
35 |
600 |
|
0808MA1.7 |
8.00±0.05 |
8.00±0.05 |
1.70±0.10 |
35 |
600 |
|
9.4X9.4MA1.7 |
|
8.00±0.05 |
1.70±0.10 |
35 |
600 |
|
1308 |
13.40±0.05 |
8.00±0.05 |
1.90±0.10 |
45 |
800 |
|
1008 |
10.00±0.05 |
8.00±0.05 |
1.90±0.10 |
45 |
800 |
|
9.4X9.4 |
|
8.00±0.05 |
1.90±0.10 |
45 |
800 |
|
0808 |
8.00±0.05 |
8.00±0.05 |
1.90±0.10 |
45 |
800 |
*Non-standard sizes available on request.
