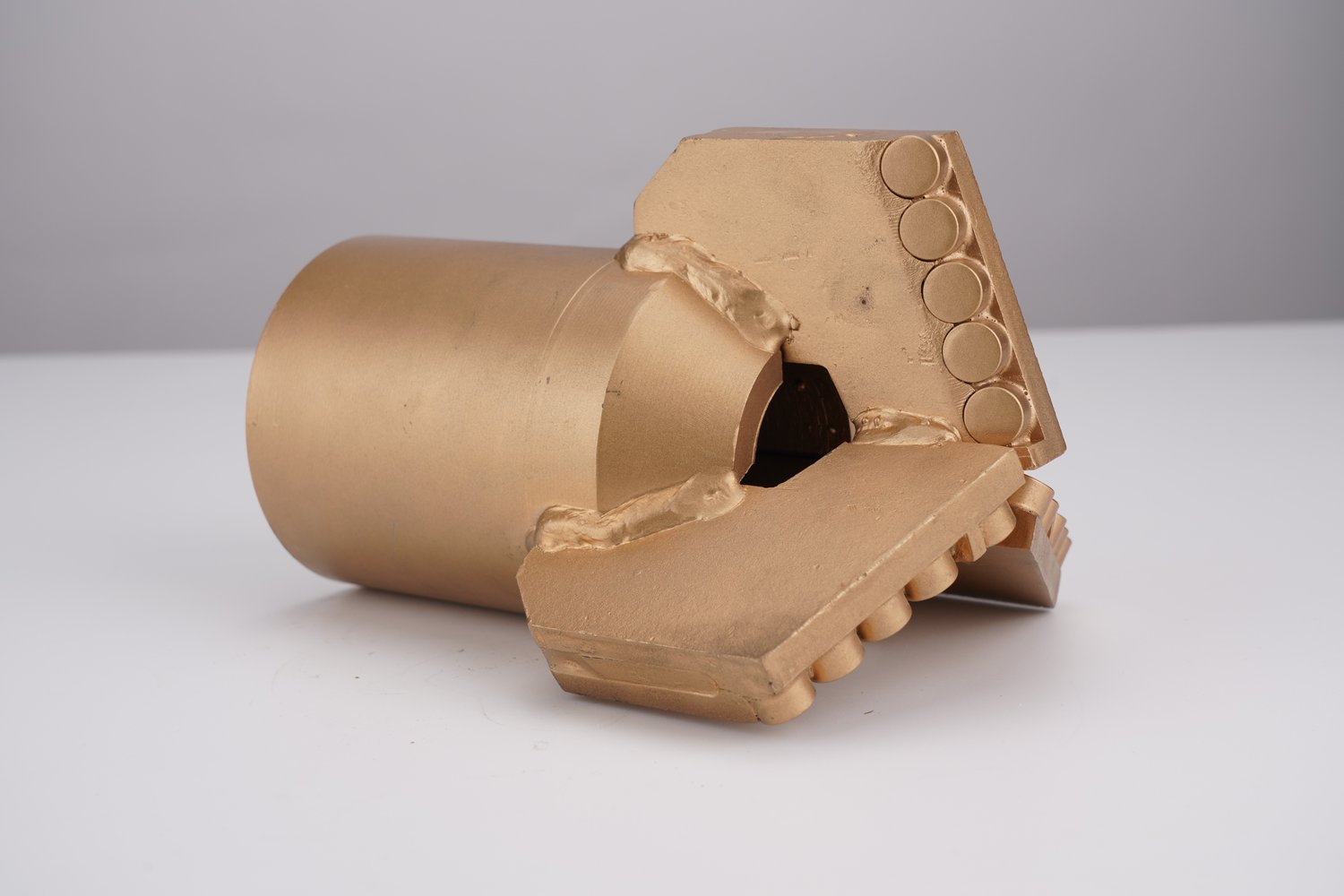

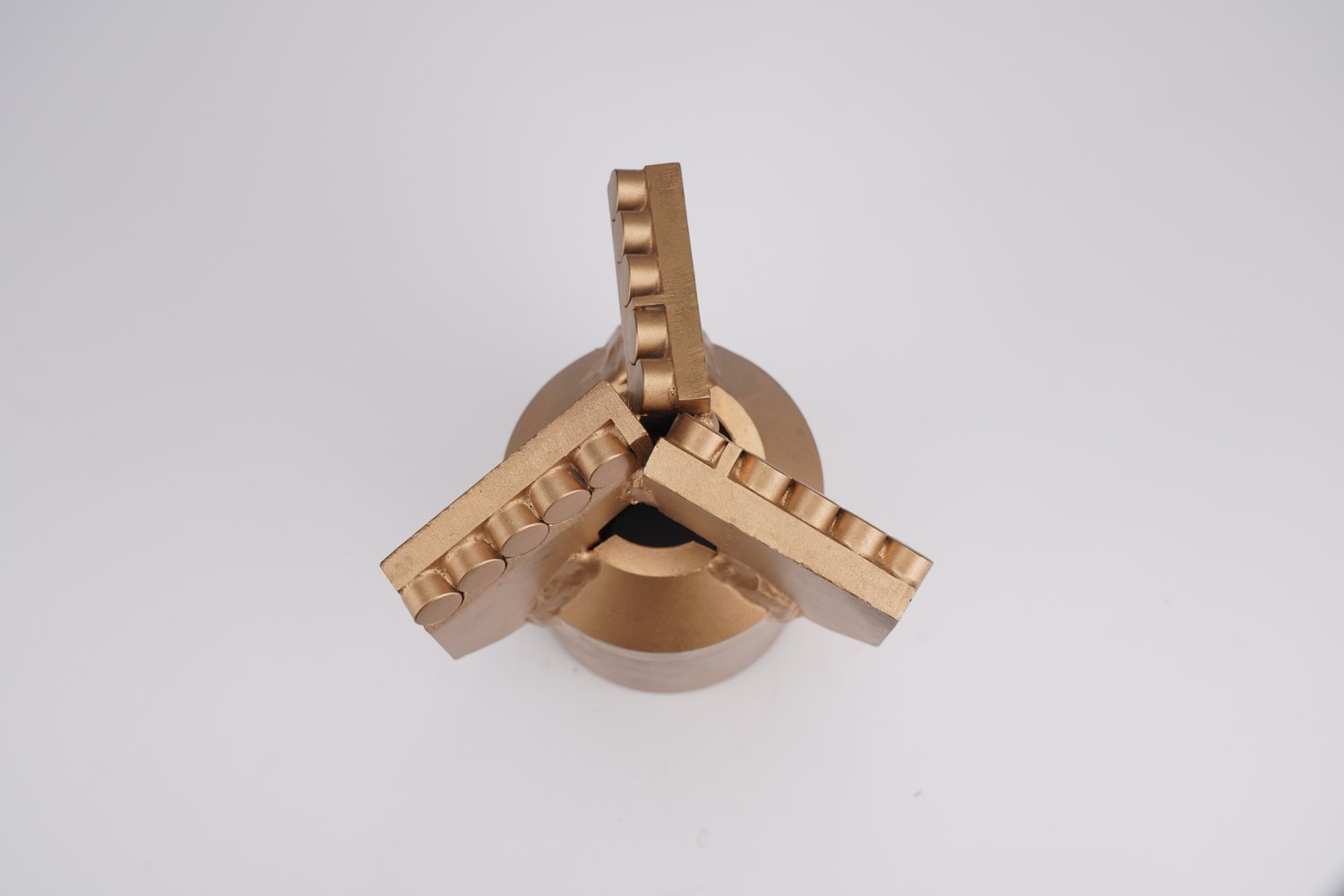

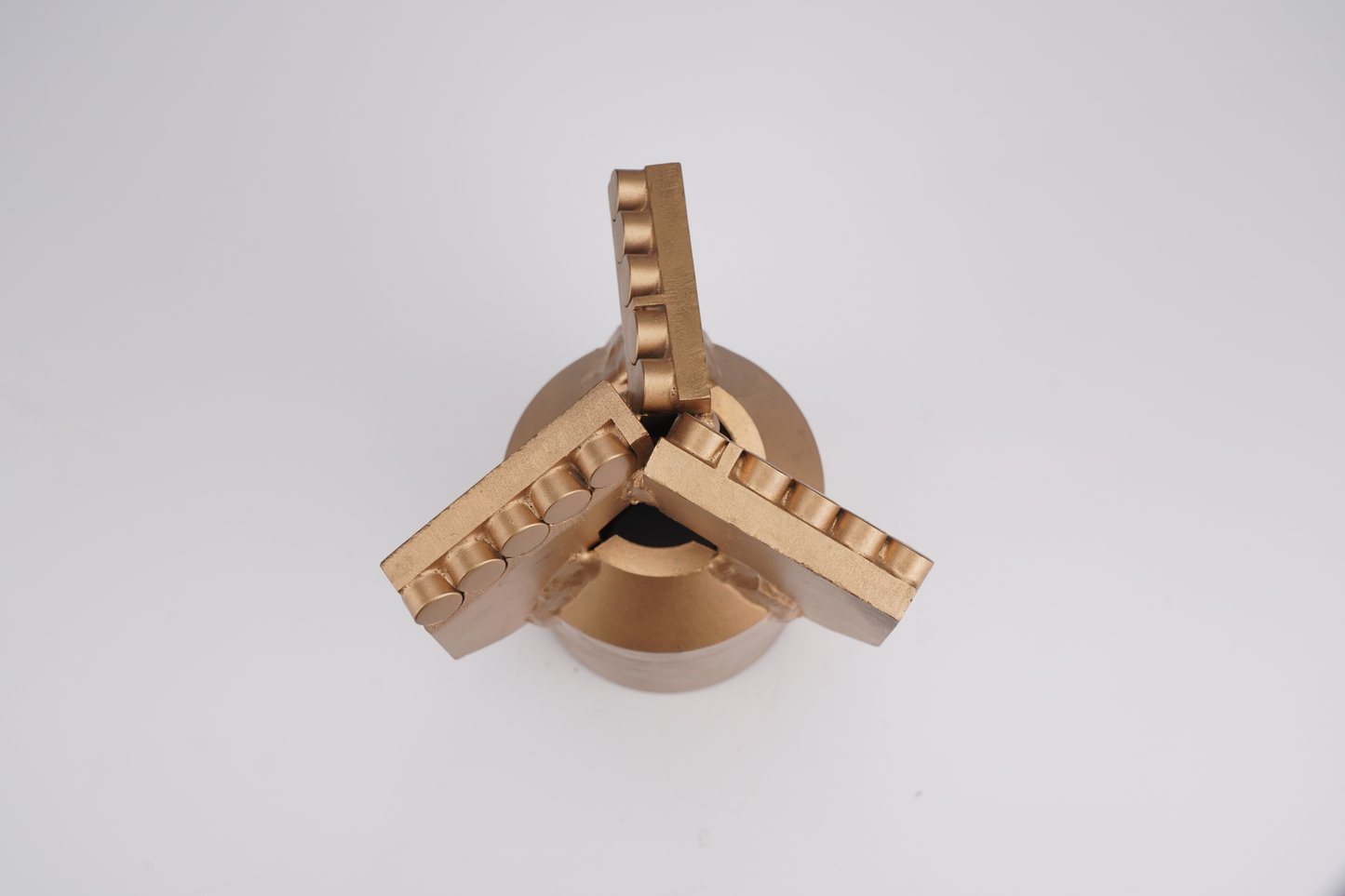

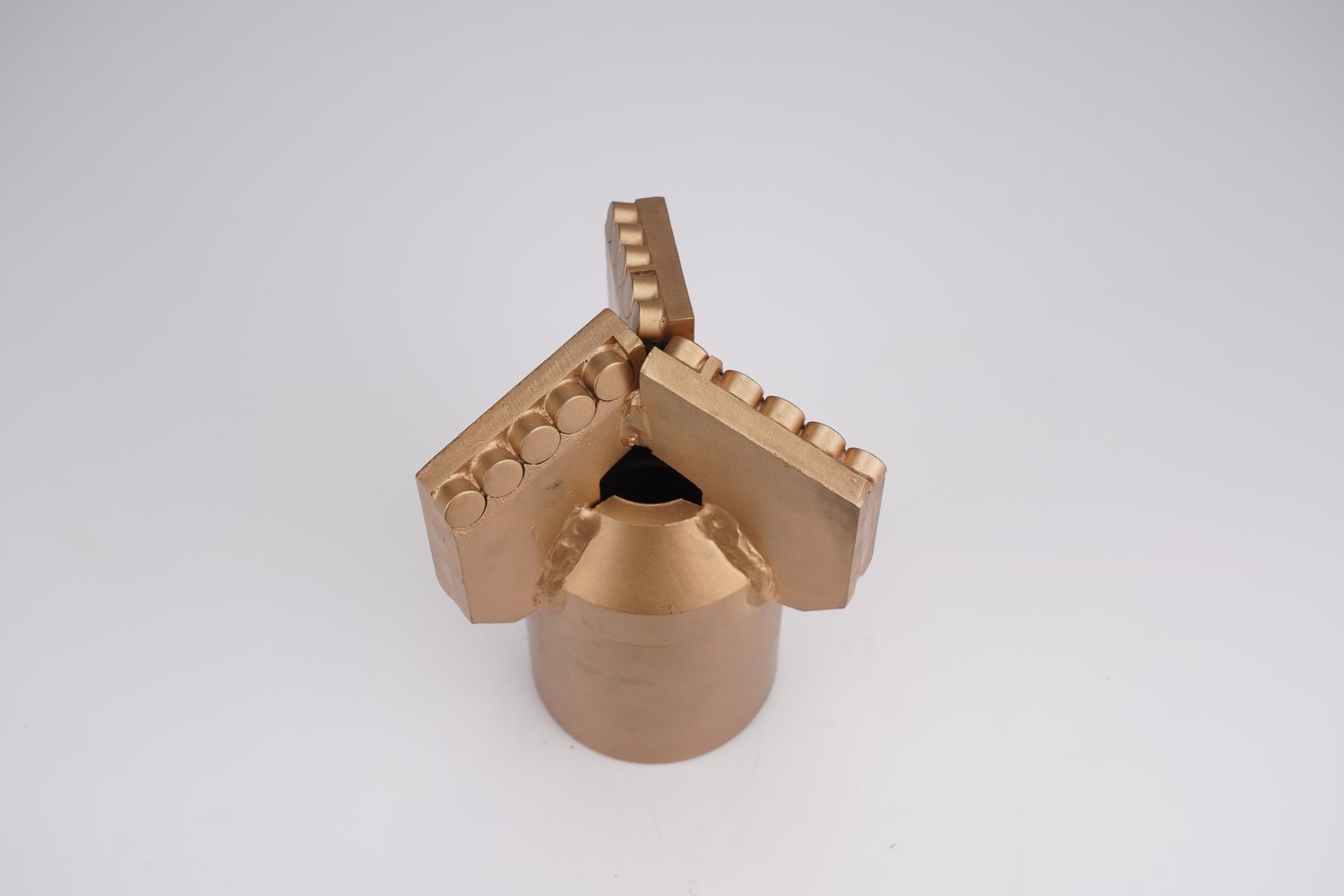

  • PDC Drag Drill Bit
  • PDC Drag Drill Bit
  • PDC Drag Drill Bit
  • PDC Drag Drill Bit
  • PDC Drag Drill Bit
  • PDC Drag Drill Bit

    Fast Drilling Speed And High Efficiency

    Gauge insert protection:Gauge inserts are used on the side to improve the wear resistance of the drill bit.

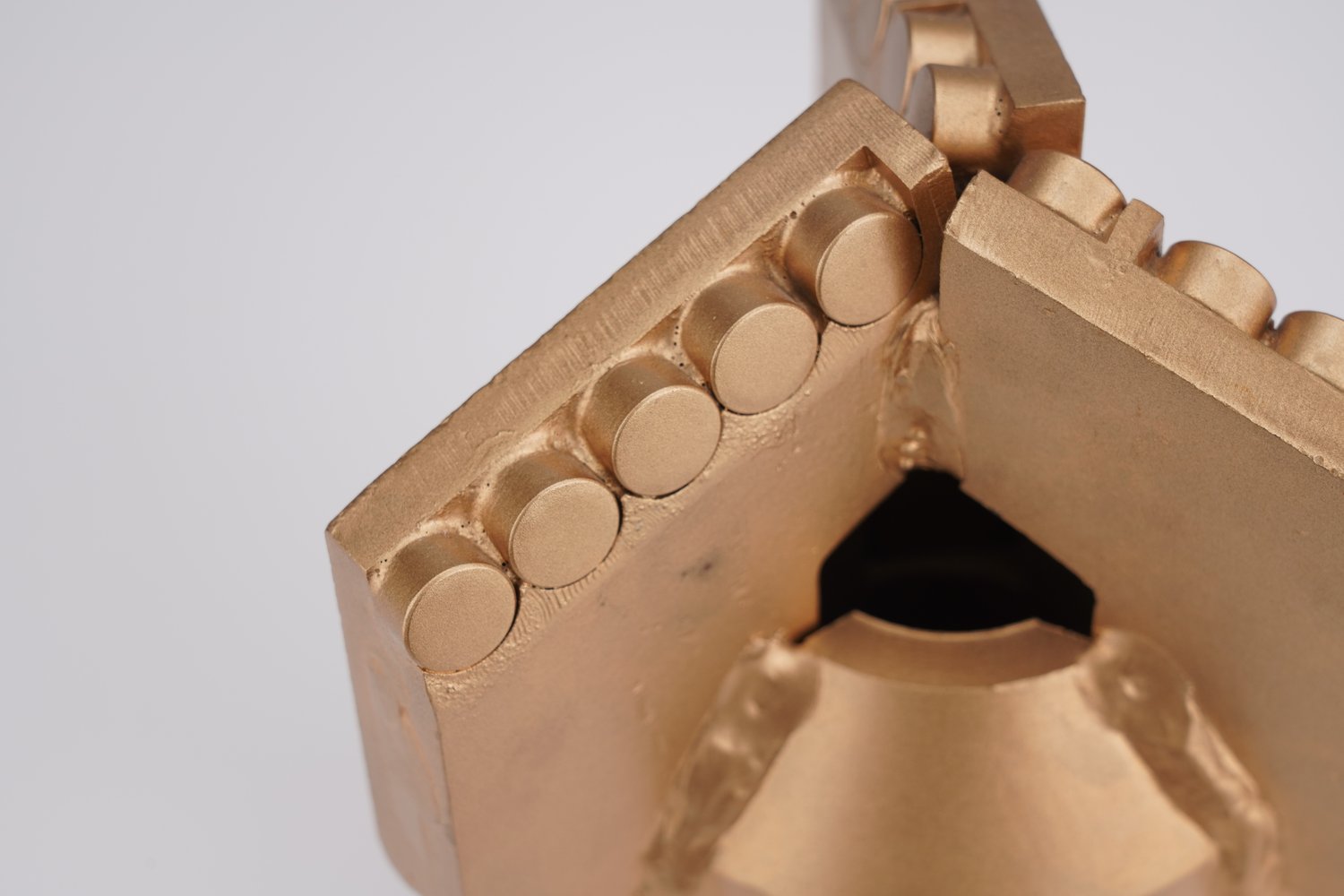

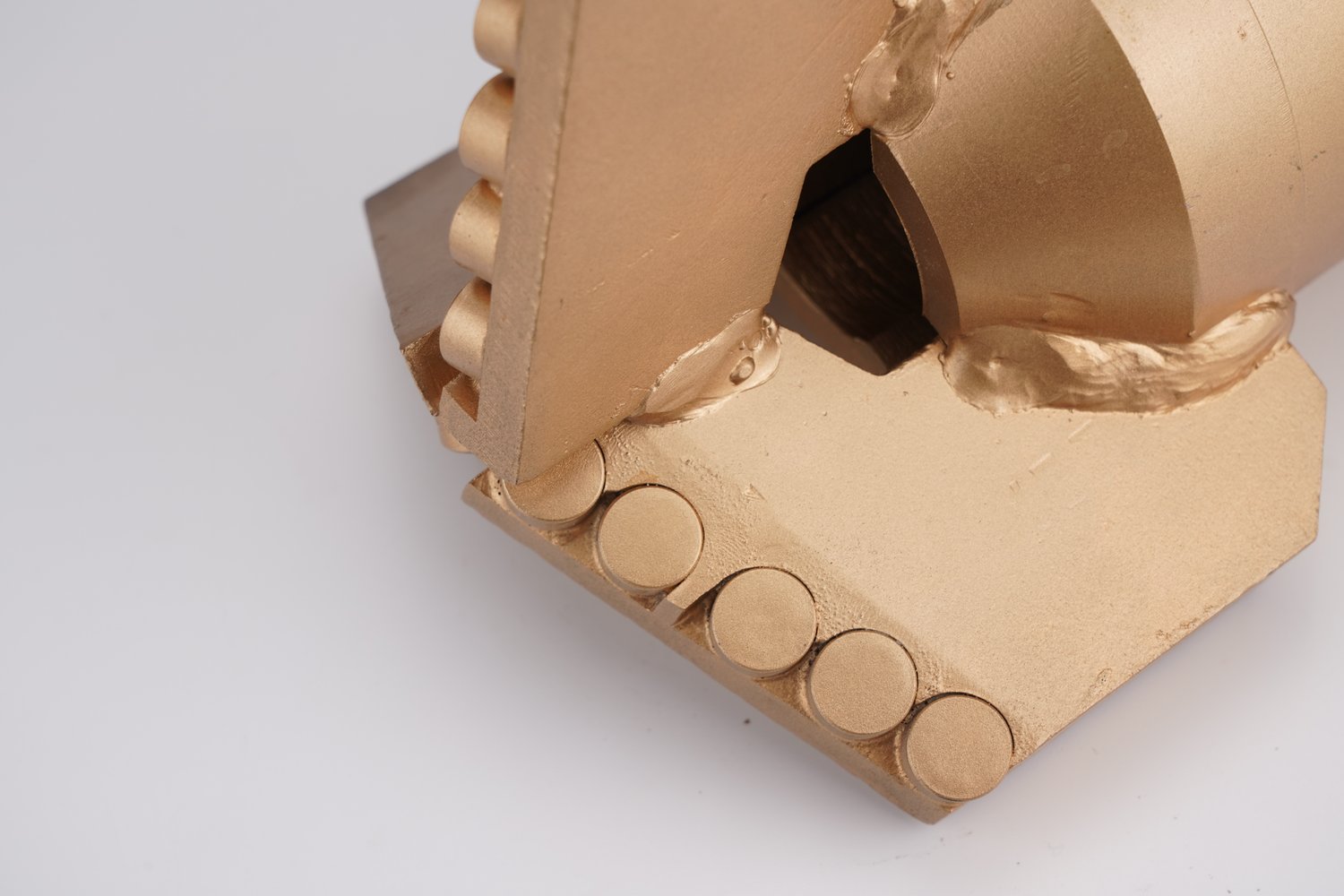

    Blade Protection:PDC cutter can be used to protect the blade under the wing.

    Available Sizes:Φ75mm - φ350mm

    Product Description:

    Sizes: 75mm~350mm

    Blades: 3/4 blades

    PDC cutter used: 1304mm, 1308mm

    Material: Steel body and PDC cutter

    Gauge protection: Diamond-impregnated gauge/gauge insert

    Features: Fast drilling speed and high efficiency

    Formation: Suitable for soft rock formation (clay, shale etc)

    Application: Water well, Mining exploration & Probing, Geothermal, and Geological prospecting...



    Our tool application

    Our products are used in various scenarios, such as Mining Industry Petroleum Natural Gas Water Well Tunneling Drilling
